GM Tilt Steering Column Rebuild Instructions

This Saginaw design was used on GM vehicles from 1969 through 1999 in various forms. All vehicles with a Saginaw design column will be similar to this procedure.

Each of the 5 steps is available individually for $12.95 each---or the entire series is available as a single download option for $39.95. Determine which set of instructions you need, then click on the link.

The 1st set, �Upper Removal�

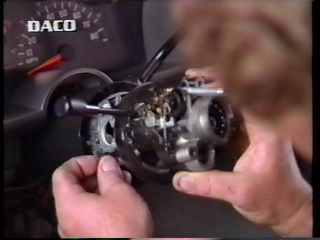

Removal of the Steering Wheel & Lock Plate,

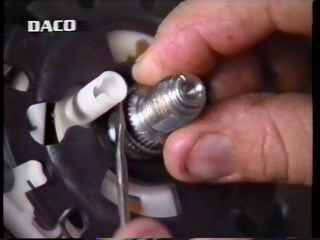

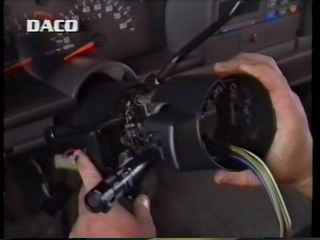

Turn Signal Switch & Lock Cylinder
The 2nd set, �Lower Removal�
Removal of the Tilt Housing Cover, Dimmer Cap & Actuator
Tilt Housing, Steering Shaft, Tilt Support
& Lower Bowl
The 3rd set �Lower Assembly�
Assembly of the Lower Shift Bowl, Tilt Support Housing
Steering Shaft, Tilt Housing & Rack Gears.
The 4th set �Upper Assembly�

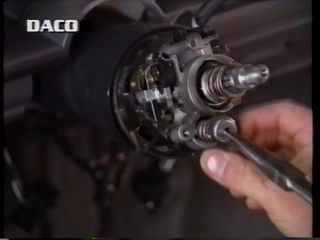

Assembly of the Upper Bearing Seat
Dimmer Cap & Actuator, Upper Lock Cover
Lock Cylinder, Turn Signal Switch, Horn Cam
Lock Plate & Steering Wheel.
The 5th set �Tilt Housing Rebuild Instructions�

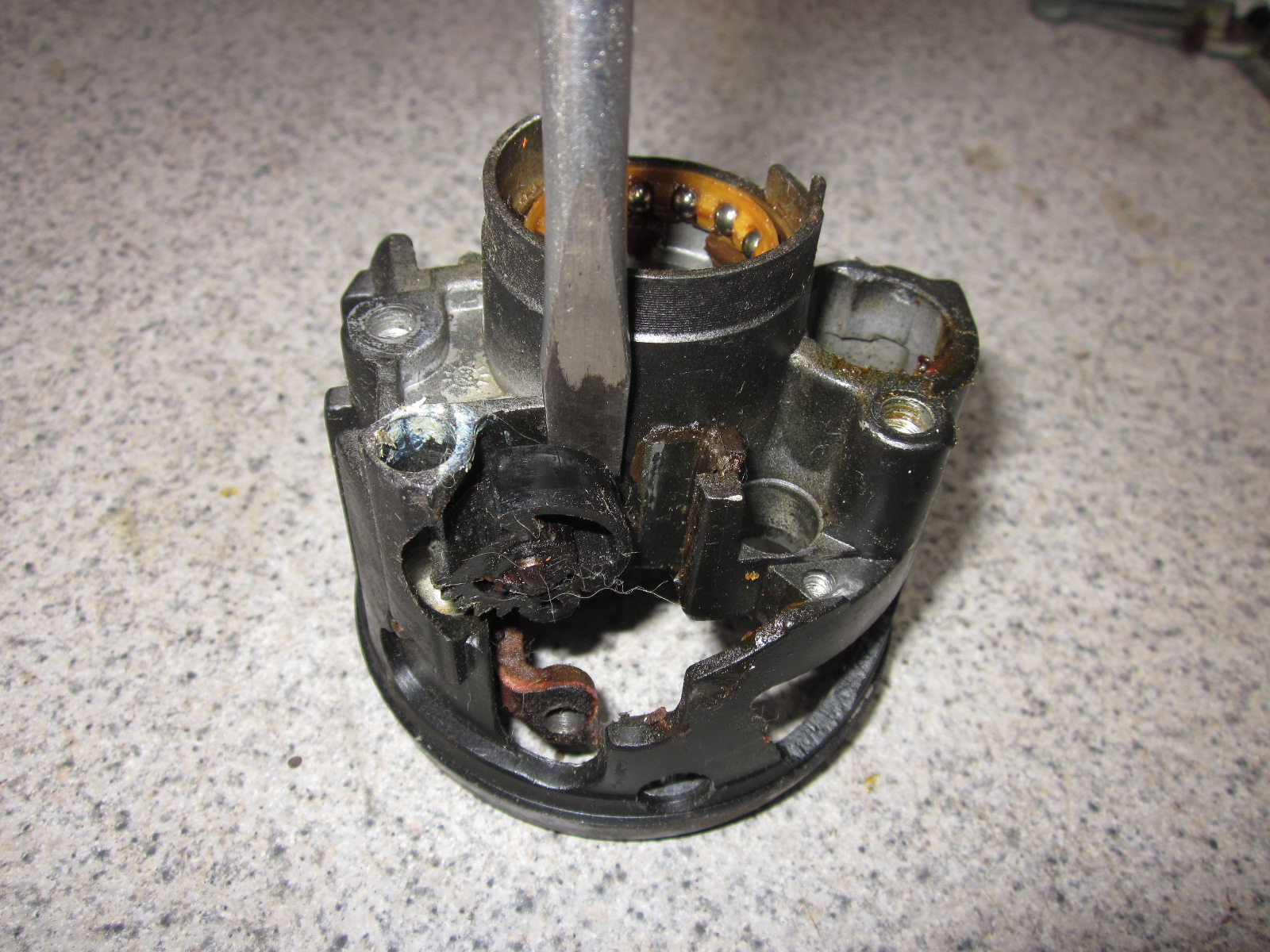

Rebuilding the tilt housing
including replacing the bearings
and rack gears properly.


Download the entire PDF series here for $39.95.

For parts orders, click "Order it Now" to view shipping options, pricing & speeds BEFORE you pay
